Die Siedler (Settlers) IV

Game Specs

Name	Die Siedler IV
Release-Date	02/2001
Redump ID	48590
Protection	SafeDisc v2.10.030 + ???
Cracked under	Win XP + Win 10
Tested under	Win 10
Scene-Crack by	Myth

Needed Tools:

• Good Old PC (Windows XP)
• x32dbg
• ProcMon 3.1 (Win XP compatible)
• PE tool of your choice (e.g. PE-bear)
• The original Game-CD of course ;)
• The previous articles on SafeDisc
• Eine Kiste Club-Mate

Disclaimer

• The games are cracked for educational purpose and to regain compatibility with modern systems
• The games are more than 20 years old and can be found freely on the net via e.g. archive.org
• No parts of the game are distributed

How to Crack

Note: This game won’t run on any of my PCs so I could not fully test it and I guess the crack is not complete.

I got this game a while ago in a bundle of many other games. Upon checking Redump, I discovered, that it was using the same protection I had tackled in the last writeup, only a slightly earlier version, so I thought I might see how they differ. I won’t go into much details this time, for that, see the GTA 3 writeup.

By the way, if you wonder, how to detect the exact SafeDisc version (at least for v2.x), search for the string BoG_ *90.0&!! Yy> in the .exe file, the three 32-Bit values after that are the Major, Minor, Fix version:

This would be v2.10.030.

I again used ProcMon to give myself a short overview and it looked like this version already does this tempfile thing, so we can stay within the process. The real game.exe is actaully s4_main.exe in the Exe subfolder.

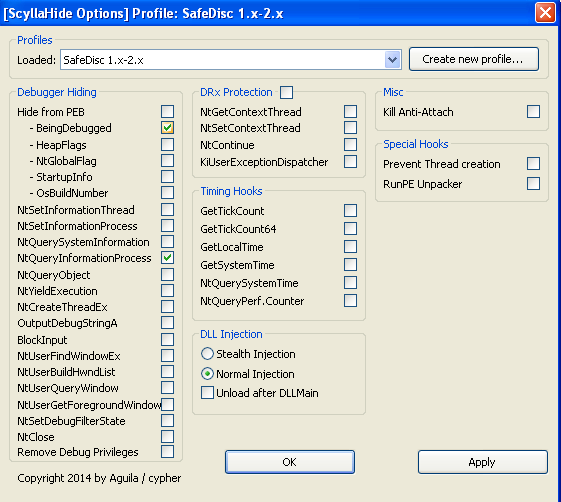

The debugger detection is the same as before (PEB & NtQueryInformationProcess), so I simply used ScyllaHide this time to tackle that more easily:

This time I was interested in where the tail jump actually is, so I started off by breaking in LoadLibraryA in hope to see the transition from SafeDisc code to game code. I filtered down the results by only breaking on version.dll (which I found was one of the last loads) by the following breakpoint code:

$addr_LoadLibraryA = LoadLibraryA + dis.len(LoadLibraryA)
bphws $addr_LoadLibraryA
bphwcond $addr_LoadLibraryA, "stristr(utf8(arg.get(0)), \"version.dll\") == 1"

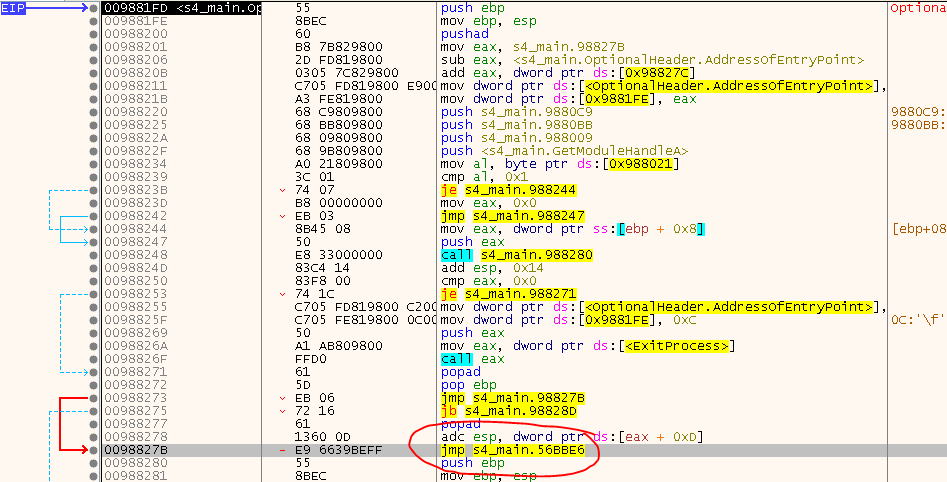

From there I climbed my way up, past some Resolver stubs we know already and finally ended up on this bit which smelled like a tail (jump):

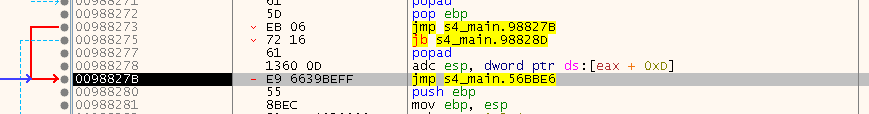

To get up with a more general solution for next time, I then restarted the game, typed in the address of the jump and was rather surprised to see that the jump was already there:

So, place a HW BP there, let it rip and after one single step we can create a snapshot of our VM session.

A short look around reveals that the intermodular calls look like the ones we know from GTA 3 already. So I let the script run, just added a minor check and after a few seconds everything was fixed ;)

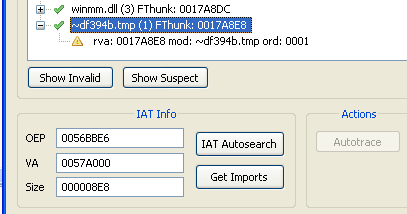

The only thing I had to manually fix was to remove the one left over import from the SafeDisc DLL:

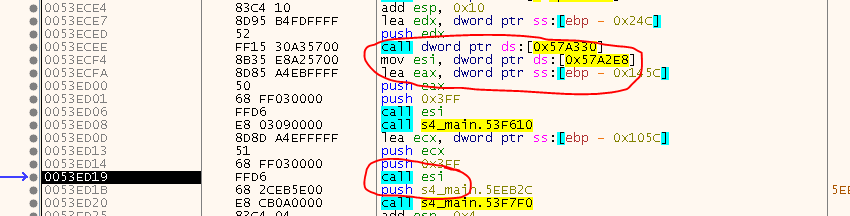

But turns out, the game won’t start. Took me some moments to realize that game calls other modules via registers. For example:

Well, this is annoying since the CALL and thus the return address is seperate from the place where the thunk is MOVed to the register, so how do we figure out the return address? Maybe we just don’t care and use zero as return address since sometimes you have many CALL ESI one after another and that would have complicated things for SafeDisc also. So, just ignore it ;)
Turns out, this idea works fine ;) The only tideous task was to implement the check for all x86 Registers (except ESP).

Unfortunately, while SafeDisc seems to be defeated now, the game still crashes on all of my PCs. I guess it has problems with modern GPUs. So let’s leave it that way and cary on to another game. Was still a nice challenge and the Script grew a bit.

The unpacking script (At the time of writing this article)

The settings are:

$iat_start = 0x0057A000
$iat_size = 0x000008E8
$user_code_end = 0x18000000

---
